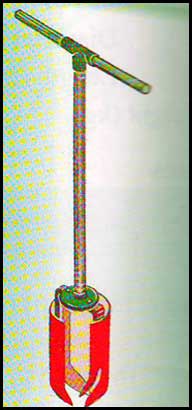

The earthe auger is a manually operated hand tool and it consists of cutter head having semicirculuar blades connected to pipe with th ehelp of clamp and flange. The connecting pipe if further connected to a handle. The semicirculuar blades are fabricated from medium carbon steel and hardened to 450 HB. The handle and pipe is fabricated from galvanished steel. For operation the cutter head is placed on the moist soil and rotated manually which helps in penetration of the head. |
 |
|
Earth Augger

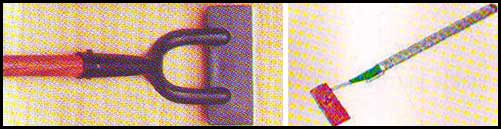

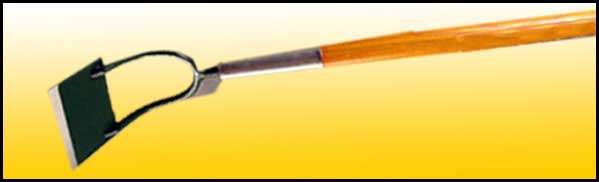

Straight Blade Hand Hoe
The straight blade hand hoe is a long handled hand tool for operation between the crops rows. It consistes of a blade. curved arm, ferrule and a long wooden handle. The curved arm joins the balde with the ferrule to ehich the handle is fixed. The blade, which performs the cutting/ uprooting of the weeds, besidesstirring the soil is madefrom medium carbon steel hardened to 350-450 HB.

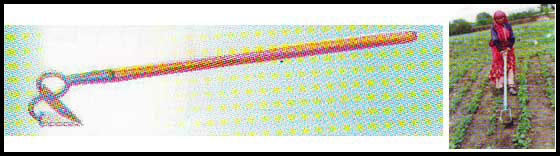

V Blade Hand Hoe
The V- balde hand hoe is a ong handled weeding tool for operation in between the crop rows. The hoe consists of a V-blade, arms, ferrule and a wooden handle. The arms are welded to the ferrule. Wooden handle is inserted inthe ferrule. The balde of the hoe is the important component, which enters into the soil and performs the cutting and uprooting of weeds.

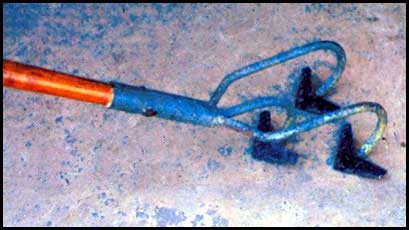

Grubber Weeder
|
We are involved in manufacturing and supplying a quality range of Grubber Weeder. Manufactured using quality basic material, these are used for weeding process in the Agriculture Industry. Widely acclaimed for dimensional accuracy, robust construction and high tensile strength, these are light in weight and are very easy to operate. |
 |
|
Dry Land Weeder
It is a long handled tool and consists of rotor with diamonds shaped pegs, cutting blade, frame and handle. The rotor consists of two circular discs, mild steel bars, and diamonds shaped pegs welded on the round bars. The pegs are arranged in staggered fashion. An axle is provided inthe rotor and joined the frame. The balde has 2 arms for adjusting depth of penetration in the soil. |
 |
|
Dry Land Weeder (Peg Type)
We are engaged in manufacturing and supplying a wide range of Peg Type Dryland Weeder. These are engineered with precision and are largely demanded in Food and Agriculture industry. Further, these are acclaimed for robust construction, dimensional accuracy and high tensile strength and can be bought at competitive prices from us. |
 |

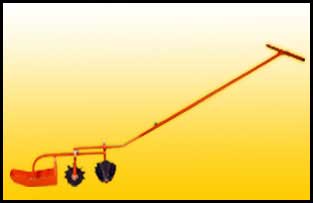

Conoweeder
The weeder consistes of 2 rotors, float, frame and handle. The rotors are cone frustum in shape, amooth and serrated strips are welded onthe surface along its length. The rotors are mounted in tandem with the opposite orientatipon. The float, rotors and handle are joined to the frame. The float controls working depth and does not allow rotor assembly to sink inthe puddle. The cono weeder is operated by pushing action. The orientation of rotors create a back and forth movement in the top 3 cm of soil. |
 |
Hand Leveller
|
 |
|

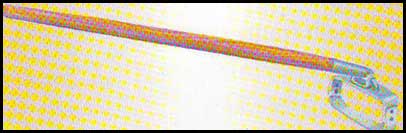

Push Type Weeder
It is a long handled manually operated hand tool for operation between the crop rows and around the plants. |
 |

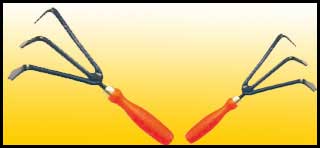

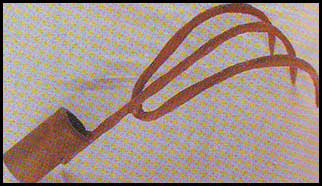

Hand Cultivator
The hand cultivator is auseful hand tool, which is operated in a squatting position to create soil mulch and uprooting weeds. The design of the hand cultivator varies with the region having different soil types.
|
|
